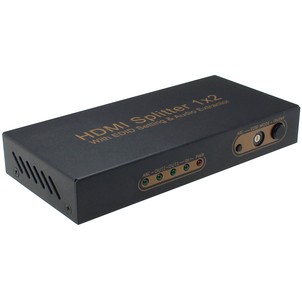

The 1x2 HDMI splitter with audio extractor expands the functionality of your home theater system by splitting the HDMI signal to 2 x HD displays and at the same time, extracts the audio out to Toslink and Digital Coaxial S/PDIF and 3.5mm. The device is typically used to extract the HDMI audio out to a sound bar or audio receiver and includes support for Dolby digital (AC3) / DTS / LPCM / 5.1CH audio modes.

Features

• 1 HDMI input to 2 x HDMI Splitter with Audio Extractor


• Output Audio: Toslink / Digital Coaxial S/PDIF, 3.5mm


• Full HD 1080p, 3D and 4K x 2K support


• HDMI Resolution: 4K x 2K, 3D, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i


• Video Color: 24 bit, deep color 30 bit, 36 bit


• Supports up to 16 built-in EDID modes


• Audio Return Channel (ARC): Allows user to have one connection between TV to audio receiver or sound bar. Send video to the TV with an HDMI cable and the same HDMI cable sends audio from TV back down the same cable.


• Audio Mode: Dolby digital (AC3) / DTS / LPCM / 5.1CH


• 24bit/192KHz DAC


• No Loss of quality


• Easy to install


8 Port HDMI Splitter with 3D and 4K support is a great way to duplicate an HDMI signal for up to eight separate displays. This HDMI splitter is also wall mountable (screws included) and allows for a clean and easy set up. HDMI ports have a built-in booster that allows you to extend the signal for up to 180ft (up to 100ft input / 80ft output) from the original source while watching sports, movies, and more in high definition on up to eight displays simultaneously. The output from this device supports resolutions up to 4K with audio support as well. Installation is easy, with no software required. Simply plug in your HDMI source to the front input (DVD, Blu-ray, etc.) and then from the output ports, plug up to eight displays.

Features

• Duplicates one HDMI source to 8 displays


• Supports resolutions up to 4K


• Supports 3D


• Input Resolution: 480i/480p @ 60Hz, 576i/576p @ 50Hz, 720p @ 60p, 1080i/1080p @ 50/60Hz, 1080p @ 24Hz 3D, 720p @ 50/60Hz 3D, 4k x 2K (up to 30fps), 640 x 480, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900 2 60Hz, 1400 x 1050, 1600 x 900, 1680 x 1050, 1920 x 1080 @ 60Hz


• Output Resolution: 480i/480p @ 60Hz, 576i/576p @ 50Hz, 1080i/1080p @ 50/60Hz, 720p @ 50/60Hz, 1080p @ 24Hz 3D, 3840 x 2160p @ 24Hz (4K x 2K)


• Compliant with DVI specification 1.0


• Built-in Booster: Extends the signal up to 180ft/54M (100ft input/80ft output max.)


• Easy installation; plug and play


• 1 HDMI female input to 8 HDMI female output


• Compliant to HDCP


• Supports all HDMI features including deep color, lip sync, CEC and all high resolution multi-channel audio format, including Dolby digital plus, 7.1 LPCM, Dolby TrueHD and DTS Master Audio


• DC 5V/3A power adapter included


• 4K x 2K - When both input and output devices supports 4K x 2K (to reach 4K x 2K resolution, all connected HDMI cables must be shorter than 15ft.)

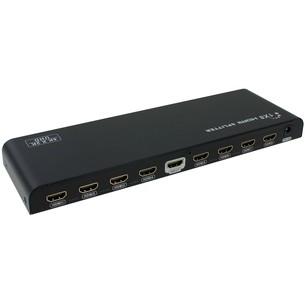

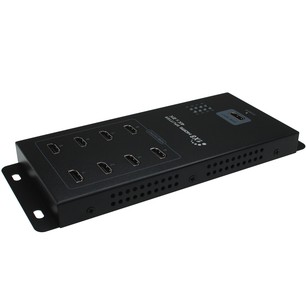

Our second-generation HDMI splitters have been upgraded to support resolutions up to 4K UHD at 60Hz to fully support the HDMI 2.0 standard with HDCP 2.2. The 1x8 HDMI splitter allows you to distribute one HDMI source onto up to 8 displays, perfect for applications that require multiple or more displays to show the same content from a HDMI source. A built-in amplifier boosts the HDMI signal to support longer lengths. The 1x8 HDMI splitter features a wall mountable design, allowing for a more organized home theater setup. Constructed with a metal housing, these splitters provide durability for any application.

Features

• Distributes one HDMI source to eight displays


• Support for resolutions up to 4Kx2K UHD at 60Hz


• Compatible with HDMI 2.0 / HDCP 2.2


• 3D support


• Supports standard audio and DSD (Direct Stream Digital) and HD (HBR) audio


• Built-in amplifier to support longer HDMI lengths


• Metal housing for durability


• 5V 2A power adapter included

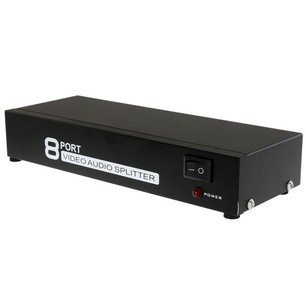

Stereo audio is audio that contains two channels of audio, typically left and right channels in correspondence with the human left and right ears. RCA is a long-time industry standard in the audio/video market. Splitters manage connections between more than one connection at one end and one connection at the other end. Splitters are very useful for systems where one device is shared among multiple displays. Using these splitters, you can enjoy high-fidelity and stunningly realistic audio and video that only superior splitters can deliver.

Features

• 1 A/V input, 8 output simultaneously


• With premium component and advanced circuit design/li>


• Each output amplifies independently with high isolation and strong anti-interference

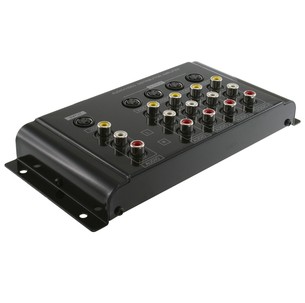

Stereo audio is audio that contains two channels of audio, typically left and right channels in correspondence with the human left and right ears. RCA is a long-time industry standard in the audio/video market. S-Video is among the most popular types of connections used by everyday home theater devices, such as TV's, DVD players, DTV receivers, DVR's, game consoles, graphic cards, and the list goes on. Distribution Amplifiers receive a signal from a single source and outputs it to multiple destinations, and is useful for applications such as displaying video from a single computer on multiple screens/displays/monitors. Using these amplifiers, you can enjoy brilliant graphics and stunningly realistic high-definition video that only superior amplifiers can deliver.

Features

• Distributes 1 source to 4 outputs


• Automatic gain


• Maintains picture quality when driving up to four monitors from a single A/V source


• Metal construction


• Dimension: 25 (H) x 176 (W) x 90 (D) mm


• Includes AC adapter

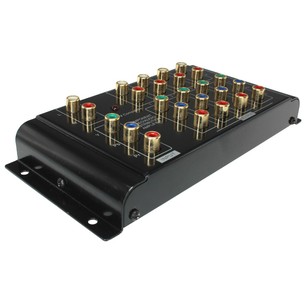

Stereo audio is audio that contains two channels of audio, typically left and right channels in correspondence with the human left and right ears. RCA is a long-time industry standard in the audio/video market. RGB is among the most popular types of connections used by everyday home theater devices, such as HDTV's, DVD players, DTV receivers, DVR's, game consoles, graphic cards, and the list goes on. Distribution Amplifiers receive a signal from a single source and outputs it to multiple destinations, and is useful for applications such as displaying video from a single computer on multiple screens/displays/monitors. Using these amplifiers, you can enjoy brilliant graphics and stunningly realistic high-definition video that only superior amplifiers can deliver.

Features

• Maintain picture quality when driving up to four television monitors from a single A/V source equipped with separate audio and video (component) output jacks


• 4 Way High-performance Component Video / Stereo Audio Distribution Amplifier (HDTV Compatible)

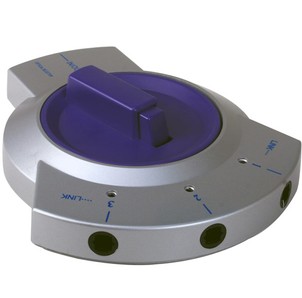

Splitters manage connections between more than one connection at one end and one connection at the other end. Splitters are very useful for systems where one device is shared among multiple displays. Switches, on the other hand, manage connections between one or more connections at one end and one or more connections at the other end. Switches are very useful for systems where one or more devices are shared among multiple other different devices. Using these splitters and/or switches, you can enjoy high-fidelity and stunningly realistic audio and video that only superior splitters can deliver.

Features

• Connects a maximum of 3 optical Toslink components to one input


• Easy and ready to use right out of the box


• Spring loaded locking mechanism assists the passive knob selector


• Stylish design and color adds decor


• Compatible with any toslink devices

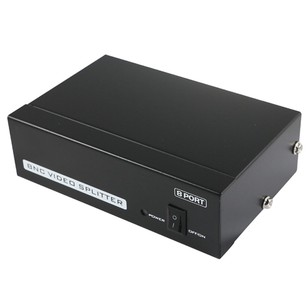

BNC splitters are used to display video and images on multiple screens. This BNC splitter allows you to display one source to eight different monitors. For example if you were displaying to a wider audience, you can display eight different displays in eight different rooms.

Features

• Input level Resistance: VS 0.8-1.0Vp-p/75Ω


• Output level Resistance: VS 0.8-1.0Vp-p/75Ω


• Bandwidth: 50Hz-5.5MHz


• Input Connector: 1


• Output Connector: 8


• Power: DC 9V 500mA


• Enclosure: Metal

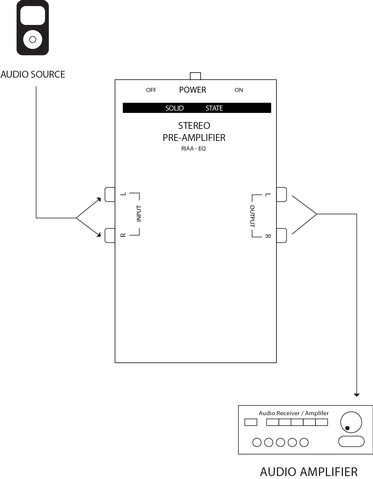

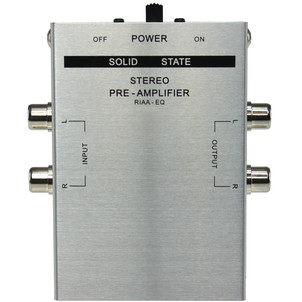

Aios preamplifier is an electronic device that amplifies a small electrical signal for further amplification. Preamplifiers are usually mounted near a signal source to reduce signal-to-noise (SNR).

Features

• Prepares electrical signal for further amplification


• Output Impedance: 50k ohms


• Requires 1 x 9V battery (not included)


• Easy to install


Example Diagram

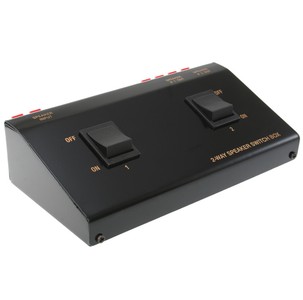

Stereo audio is audio that contains two channels of audio, typically left and right channels in correspondence with the human left and right ears. Switches manage connections between one or more connections at one end and one or more connections at the other end. Switches are very useful for systems where one or more devices are shared among multiple other different devices. Using these switches, you can enjoy high-fidelity and stunningly realistic audio that only superior switches can deliver.

Features

• 1 input to 2 outputs


• Left (+/-) & Right (+/-) screw terminals for amplifier input


• Two sets of left/right (+/-) speaker output screw terminals


• Select output to speakers set 1, speaker set 2, or both sets at the same time


• 10 watts per channel


• 1 Speaker on, 2 Speakers on OR All Speakers on

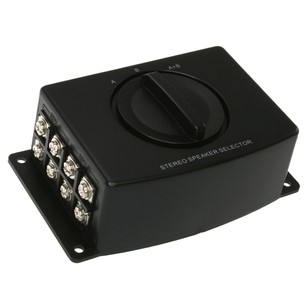

Stereo audio is audio that contains two channels of audio, typically left and right channels in correspondence with the human left and right ears. Switches manage connections between one or more connections at one end and one or more connections at the other end. Switches are very useful for systems where one or more devices are shared among multiple other different devices. Using these switches, you can enjoy high-fidelity and stunningly realistic audio that only superior switches can deliver.

Features

• Takes in one set of speaker input signals, and outputs to two speakers (selectable).


• 1 IN - 2 OUT


• Output Selection: Speaker #1 on, Speaker #2 on, or Both on.


• Rigid metal body


• Rubber feet included


• 200W max power

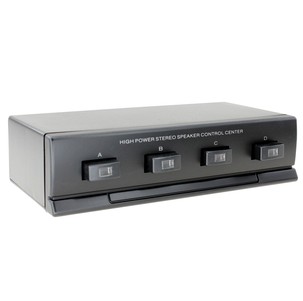

Stereo audio is audio that contains two channels of audio, typically left and right channels in correspondence with the human left and right ears. Switches manage connections between one or more connections at one end and one or more connections at the other end. Switches are very useful for systems where one or more devices are shared among multiple other different devices. Using these switches, you can enjoy high-fidelity and stunningly realistic audio that only superior switches can deliver.

Features

• 1 Input, 4 Output


• 1 Speaker on, 4 Speakers on, OR All Speakers on


• 7" x 1 13/16" x 4.25" (W x H x D)

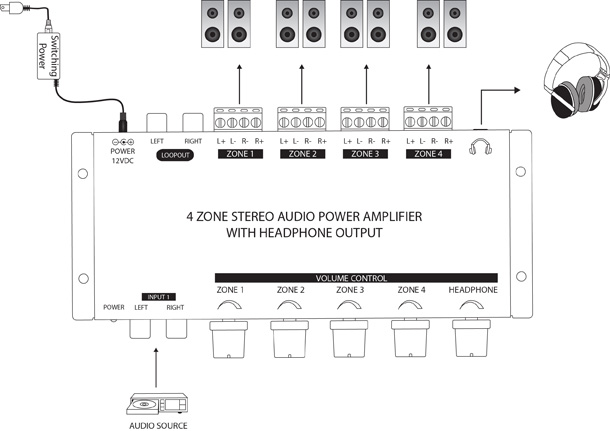

The 4 Zone Stereo Audio Power Amplifier is designed with 1 input that is completely assignable to any of the 5 zones. (One zone is for the Headphone Output). Also features loopout, and independent volume control for each zone. Includes power supply.

Features

• Compact size


• 1 audio source input


• 4 speaker output, 1 headphone output


• Large detachable terminal blocks (Included) for quick and easy installation in a structured wiring cabinet


• Wall Mountable


• Screw terminals for wires 24 to 12 gauge.


Speaker Amplifier (4)

• Amplifier Type: Stereo Class-D


• Output Power: 15W (RMS) per channel (@RL-4 ohm)


• THD+N: 0.06% (@RL = 8 ohm, F = 1 kHz)


• Minimum Load Resistance: 4 ohm


• Includes Speaker Protection Circuit


Headphone Amplifier

• Output Power: 105mW (RMS) per channel


• THD+N: 0.05% (@RL = 16ohm, F - 1kHz)


• Minimum Load Resistance: 16 ohm


Example Diagram
